Ultra-thin Hollow Absolute Value
Incremental and absolute values are output synchronously to realize simultaneous measurement of speed loop and position loop. The incremental differential signal is fed into the inverter for speed feedback and the absolute value signal is fed into the PLC for position feedback.
Classification:
Key words:
Product Description

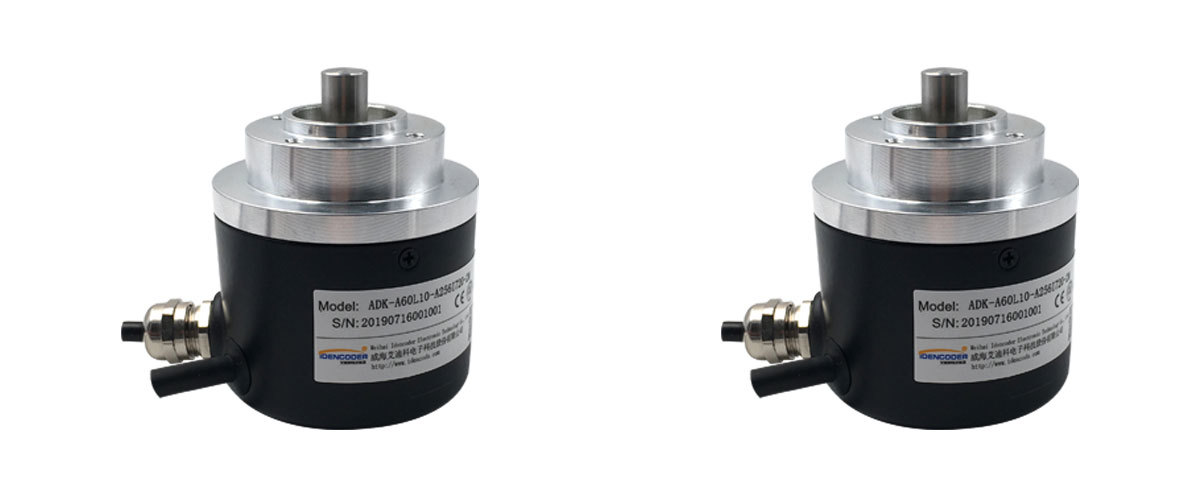

▋ ADK-DIA series dual output encoder
Model：
1)Incremental and absolute values are output synchronously to realize simultaneous measurement of speed loop and position loop. The incremental differential signal is fed into the inverter for speed feedback and the absolute value signal is fed into the PLC for position feedback.
2)Two completely independent systems output the same pulse to achieve highly reliable measurement and control requirements, such as steel mills, etc., to ensure that the data is absolutely reliable and suitable for harsh environments.
3)Specific parameters can be customized.
4)Body size: 58mm; Shaft size: 10mm;
5) Incremental push-pull output resolution: Max 4096ppr; Modbus absolute encoder: Max 16384ppr;
● Electrical parameters
| Voltage | DC24V, 8-30V |
| Output method | 1 Absolute Modbus output; 2 Increment: N: NPN output C: NPN set open R: PNP output U: PNP set open output L: long line drive E: voltage output P: complementary push-pull output; |
| Max response frequency | 150Khz |
| Max current consumption | 80mA; 150mA(Long line output) |
| Load current | 40mA; 60mA(Long line output) |
| Output high level | Min Vcc x 70%(Collector output)
Min Vcc - 2.5V（Voltage output） Min 3.4V（Long line output） |
| Output low level | Max 0.4V |
| Rise/fall time Tr/Tf | Max 1μs, Max 200ns(Long line output) |
● Mechanical parameters
| Starting torque | <0.03Nm |
| Max shaft load | Radial: 50N; Axial: 20N |
| Max speed | 5000rpm |
| Moment of inertia | 4 x 10^(-8)kg.m2 |
| Net weight | 120g |
● Environmental parameters
| Operating temperature | -25℃-80℃ |
| Storage temperature | 30℃-80℃ |
| Shock proof | 50G/11ms |
| Anti-vibration | 10G 10-2000HZ |
| Protection level | IP54 |
● Mechanical dimension drawing
