Absolute Value Output
128,256,512 teeth, high speed, high precision, high reliability,It is mainly used for speed measurement and positioning, and is widely used in machine tool spindles, high-speed motor spindles, elevators and other equipment;
Classification:
Key words:
Product Description

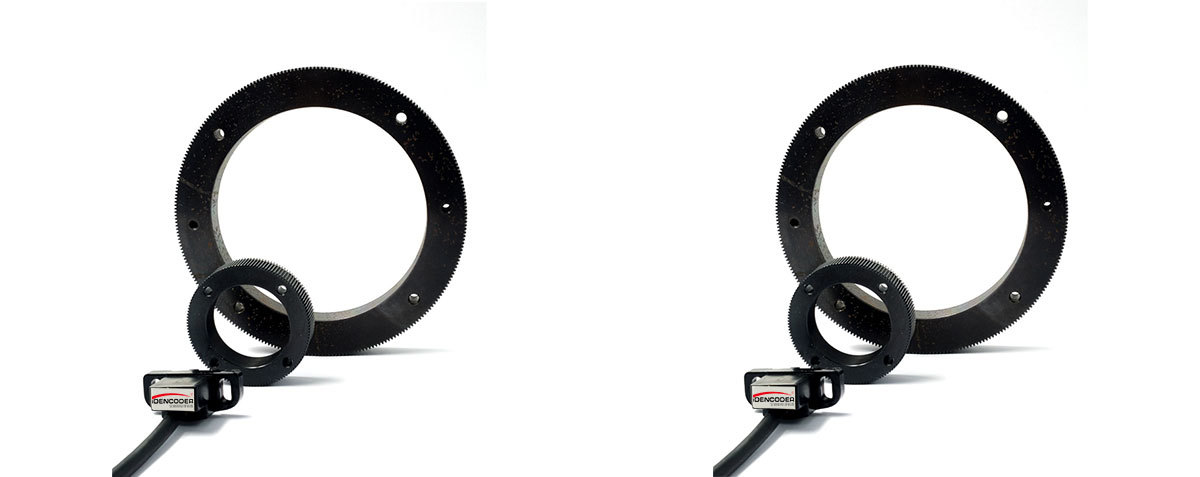

▋ ADK-GR series absolute value output, universal Tamagawa, Taiwan Jiarui
128,256,512 teeth, high speed, high precision, high reliability
○ Non-contact type, no mechanical wear;
○ Direct drive has no mechanism backlash;
○ High response frequency 0-500KHZ;
○ Protection grade IP68, suitable for harsh environments;
○ The sensor head is small in size, suitable for installation in a small space;
● Gear induction type (square wave)
○ The third-generation product of CNC machine tool spindle encoder, high-speed, large hollow, non-contact sensing mode;
○ Replace the traditional method of CNC lathe spindle encoder, save the belt pulley mechanism;
○ Speed: Max can be as high as 24000 rpm;
○ The output signal is a square wave (TTL) standard gear;
○ Modulus: 0.3, 0.4, 0.5mm, optional;
○ Number of teeth: 128 teeth, 256 teeth, 512 teeth, optional;
○ Two kinds of induction heads are available, small induction head, small size, suitable for small installation space.
○ And adopts a high protection grade design (IP68), which can be used in harsh environments.
○ The non-contact sensing method detects the rotation position and speed without worrying about mechanical wear.
○ Can be used with Garry IGS series
○ It is mainly used for speed measurement and positioning, and is widely used in machine tool spindles, high-speed motor spindles, elevators and other equipment;
● Gear induction type (sine wave)
○ The output signal is a sine wave (1Vpp), with high accuracy, suitable for high-speed electric spindles with more than 20,000 revolutions.
○ Commonly used with FANUC A20B-2003
● Gear induction type (absolute type)
○ Quasi-absolute value output, the same series of products as Taiwan Jiarui and Tamagawa
● Model example
ADK － GR － 04/128 － 35/4 － D1 － F/X － 08
Company logo Gear induction Gear module/tooth number Inner hole diameter/number of holes Reading head D1 type Square wave 8 times split
ADK － GR － 04/128 － 20/18 － D1 － F/X － 08
Company logo Gear induction Gear module/tooth number Inner hole diameter/number of holes Reading head D1 type Square wave/chord wave 8 times split
ADK － GR － 04/256 － 82/6 － D1 － F/X － 16
Company logo Gear induction Gear module/tooth number Inner hole diameter/number of holes Reading head D1 type Square wave/chord wave 16 times split
