ADK1469
Applied to zero correction or signal segmentation of CNC machine tools and printing machinery.
Classification:
Key words:
Product Description

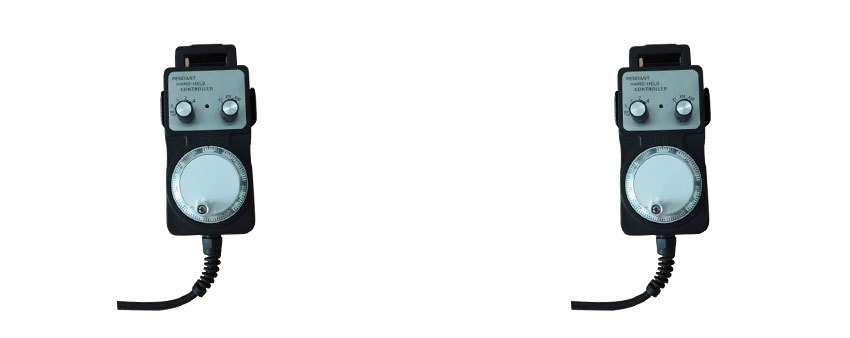

▋ ADK-1469
● product description
1、Applied to zero correction or signal segmentation of CNC machine tools and printing machinery.
2、With X1, X10, X100 three gears of magnification, 6-axis and magnification switching can be realized.
3、The appearance is beautiful, the hand feels good, and it is resistant to falling and cracking.
▋ Technical Parameters
|
Size |
134 x 69mm |
| Resolution | 100,25ppr |
| Voltage | 5v,12v,24v(+-10%) |
| Output method | Long line output Voltage output |
| Max current consumption | 80mA(Long line) 120mA(Voltage) |
| Max response frequency | 10khz |
| Rise/fall time | 200ns(Long line),1us(Voltage) |
| Operating temperature | -20℃-85℃ |
| Humidity | 30~85% |
| Protection level | IP50 |
| Number of axes | X,Y /X Y Z 4 5 |
| Magnification | N/A, X1, X10, X100 |
