Economical Electronic Multi-Turn
Model：ADK-AXXLXX-MAXXX-XXXX;After the power is off, the memory of the number of rotations of the shaft +-120 degrees is effective.
Classification:
Key words:
Product Description

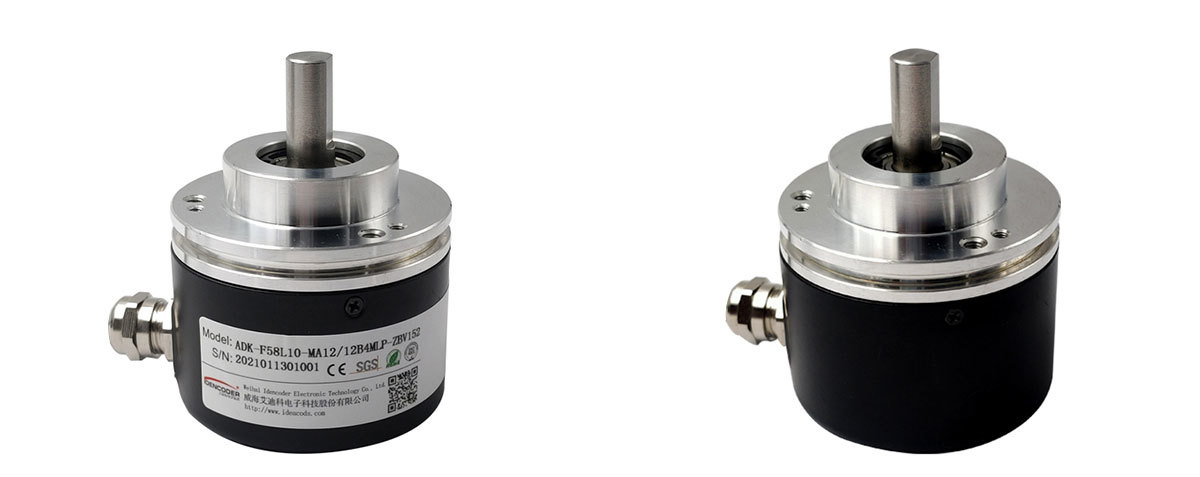

▋ ADK-MEA series economical electronic multi-turn
Model：ADK-AXXLXX-MAXXX-XXXX
1）After the power is off, the memory of the number of rotations of the shaft +-120 degrees is effective.
2）No mechanical gears, cost-effective, and cost-effective in suitable scenarios
3）Size： Min 38MM
4）Number of laps: 0-16 bit number of laps (65536 laps)
5）Single-turn resolution: 12 bit / 4096
6）Voltage: 5V/8-30V
7）Output mode: 4-20MmA; 485ASCII; serial SSI, MODBUS-RTU
▋ Technical Parameters
● Electrical parameters
| Resolution | Max resolution is 12bits; number of laps: Max.65536 laps; |
| Voltage | DC8-30V |
| Interface Protocol | Modbus |
● Mechanical parameters
| Starting torque | 9.8 x 10^(-4)Nm |
| Max shaft load | Radial: 19.6N; Axial: 29.4N |
| Max speed | 5000rpm |
| Moment of inertia | 4 x 10^(-8)kg.m2 |
| Net weight | 200g |
● Environmental parameters
| Operating temperature | -25℃-80℃ |
| storage temperature | 30℃-80℃ |
| Shock proof | 50G/11ms |
| Anti-vibration | 10G 10-2000HZ |
| Protection level | IP54/65/67 |
● Mechanical dimension drawing
