Battery Multi-Turn Encoder
Battery life is 5 years.No mechanical gear, no critical point error, no program error correction compensation, reliable performance.
Classification:
Key words:
Product Description

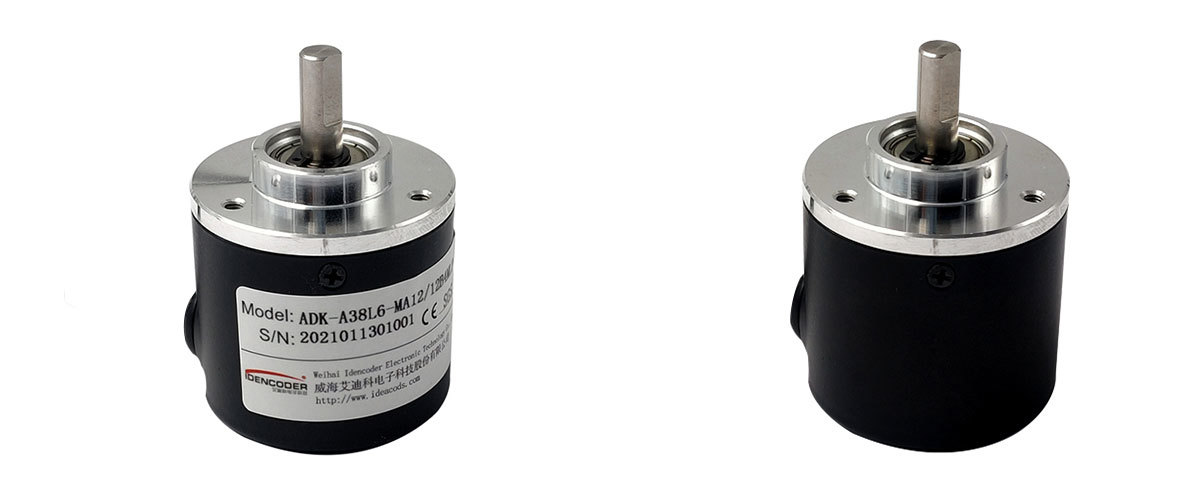

▋ ADK-MBA series battery multi-turn encoder
Model：ADK-AXXLXX-MAXXX-XXXX
1）Battery life is 5 years.
2）No mechanical gear, no critical point error, no program error correction compensation, reliable performance.
3）Size：Min 38MM
4）Number of laps: 0-16 bit number of laps (65536 laps)
5）Single-turn resolution: 12 bit / 4096
6） Voltage: 5V/8-30V
7）Output mode: 4-20MmA; 485ASCII; serial
8）Any value can be set at any position to facilitate the application of synchronous correction.
▋ Technical Parameters
● Electrical parameters
| Resolution | Max resolution is 12bits; number of laps: Max.65536 laps; |
| Voltage | DC8-30V |
| Interface Protocol | Modbus, CANopen, SSI BISS 4-20mA |
● Mechanical parameters
| Starting torque | 9.8 x 10^(-4)Nm |
| Max shaft load | Radial: 19.6N; Axial: 29.4N |
| Max speed | 5000rpm |
| Moment of inertia | 4 x 10^(-8)kg.m2 |
| Net weight | 200g |
● Environmental parameters
| Operating temperature | -25℃-80℃ |
| Storage temperature | 30℃-80℃ |
| Shock proof | 50G/11ms |
| Anti-vibration | 10G 10-2000HZ |
| Protection level | IP54/65/67 |
● Mechanical dimension drawing
