Supply alternative CANopen absolute encoder, replace Koyo trd-na1024 encoder price
Release time:
2021-01-11 00:00
◇A variety of working voltages are available
◇Cable side out
◇Impact resistance, anti-interference, high reliability
◇Widely used in automatic control, automatic measurement and other fields
Model Description
The flange form is clamping, screw hole installation, main size 50mm, shaft diameter 8mm, cable side outlet, single-turn absolute value type, resolution 1024, working voltage 8-29VDC, output code system is Gray code, push-pull Output, positive logic.
Technical Parameters

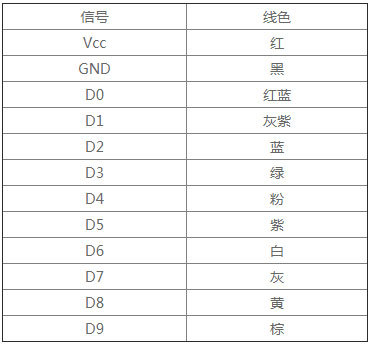

Wiring table
Note: 1) For actual wiring, please refer to the definition on the nameplate of the encoder.

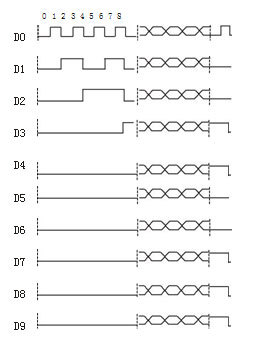

Output waveform

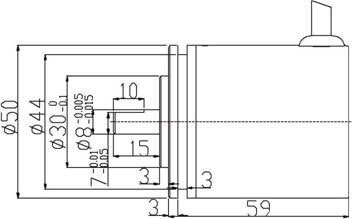

Installation size
Parallel single-turn absolute encoder gray code binary optional
Model description: ADK-A50L8-A1024G3RCN-OABA, outer diameter 50, axis 8,
Single-turn absolute value, resolution 1024, Gray code, npn open collector output.
In addition, the resolution is 256, 512, and 2048 optional, which can replace Japanese and Korean brand absolute encoders.
Such as Omron, Koyo, Autonics and so on.
Single-turn Gray Code Absolute Encoder
2 Multiple working voltage sources are available (5V, 12V, 24V, 8～29V, etc.)
2 Cable side exit, rear exit, aviation plug side exit, rear exit, DB head exit behind
2 Impact resistance, anti-interference, high reliability
2 Multiple code systems are available (binary, Gray code, Gray residual code, BCD code, etc.)
2 Zero preset, direction selection, latch function
The above is a detailed introduction to replace the Koyo Koyo TRD-NA1024NW absolute encoder, including the manufacturer, price, model, picture, place of origin, brand and other information to replace the Koyo Koyo TRD-NA1024NW absolute encoder!
Weihai Adike Electronic Technology Co., Ltd. is mainly engaged in absolute encoders, split magnetic servo encoders, gear induction encoders, CANopen absolute encoders, tool post encoders and other types of encoders. Please feel free to contact Adike electronic! Satisfactory service for customers is the primary purpose of Adike!
